Description
- On-Line double conversion technology protects from all power failures for maximum uptime.
- Active harmonic power quality control with THD <3% for maximum compatibility with sources
- Easy user-replaceable battery.
- Battery extension box allowing additional autonomy time to be quickly added.
- Automatic self-test and advanced battery management maximizing battery performance and extending battery life.
- Borri Power Guardian user-friendly UPS management software with main power failures alert and system shutdown notification via SMS
- On-line double conversion UPS from 1000 to 3000 VA.
- High efficiency reducing energy costs and environmental impact.
- Easy installation and set up.
- Extendable runtime.
UPS Type | T* | T* | T* |
Rating (VA) | 1000 | 2000 | 3000 |
Nominal power (W) | 900 | 1800 | 2700 |
UPS dimensions WxDxH (mm) | 144x367x236 | 151x444x322 | 189x444x322 |
UPS weight (kg) | 11.2 | 18.8 | 24.9 |
Input
Connection type | IEC 320-C14 | IEC 320-C20 |
Nominal voltage | 230 Vac 1-phase | |
Voltage range | 195 to 260 Vac | |
Frequency and range | 50/60 Hz, 45 to 65 Hz | |
Power factor | 0.98 | |
Current distortion (THDi) | <3% |
Output

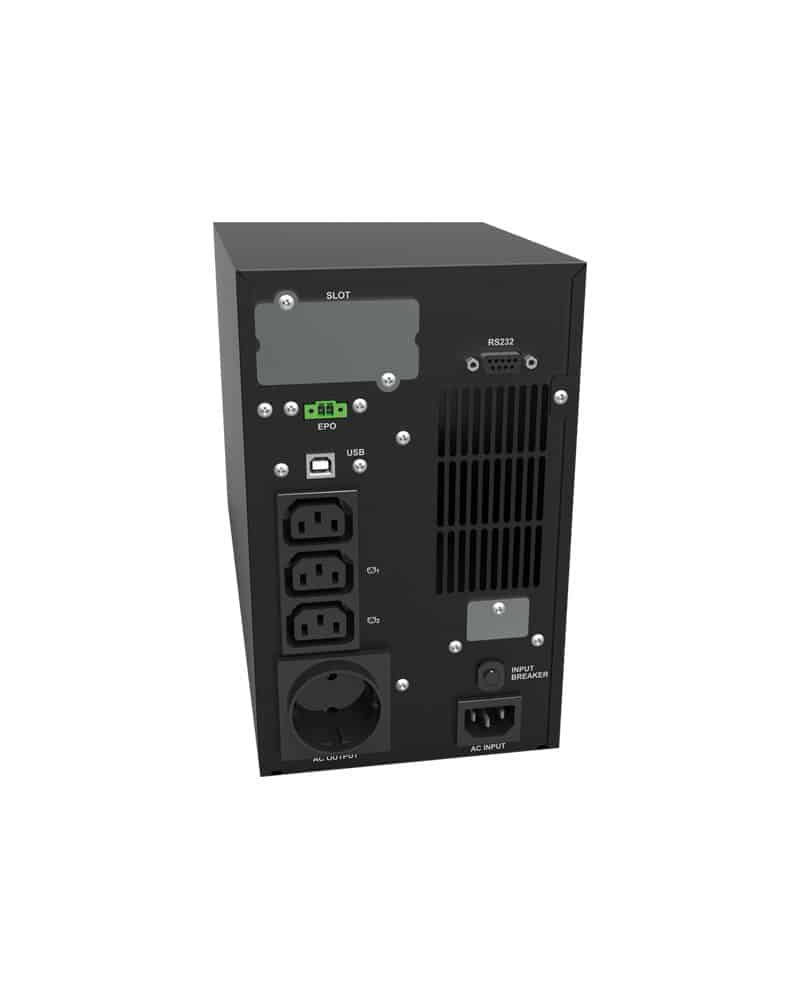

Connection type | 3 IEC 320-C13 1 Schuko |

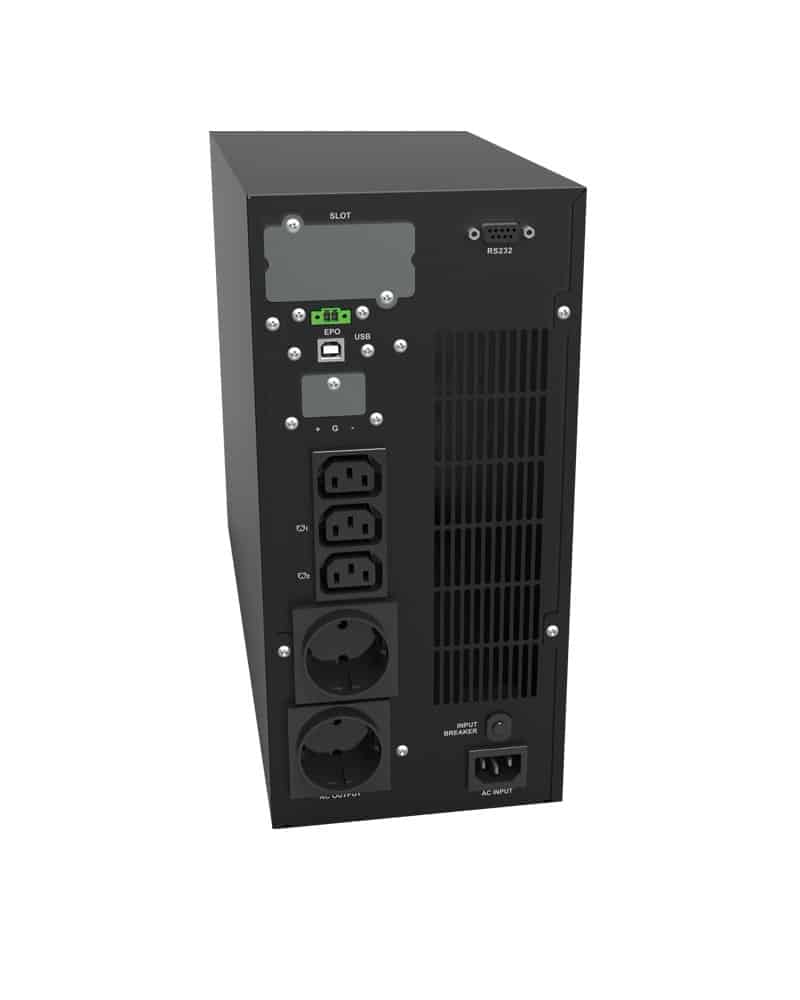

3 IEC 320-C13 2 Schuko |

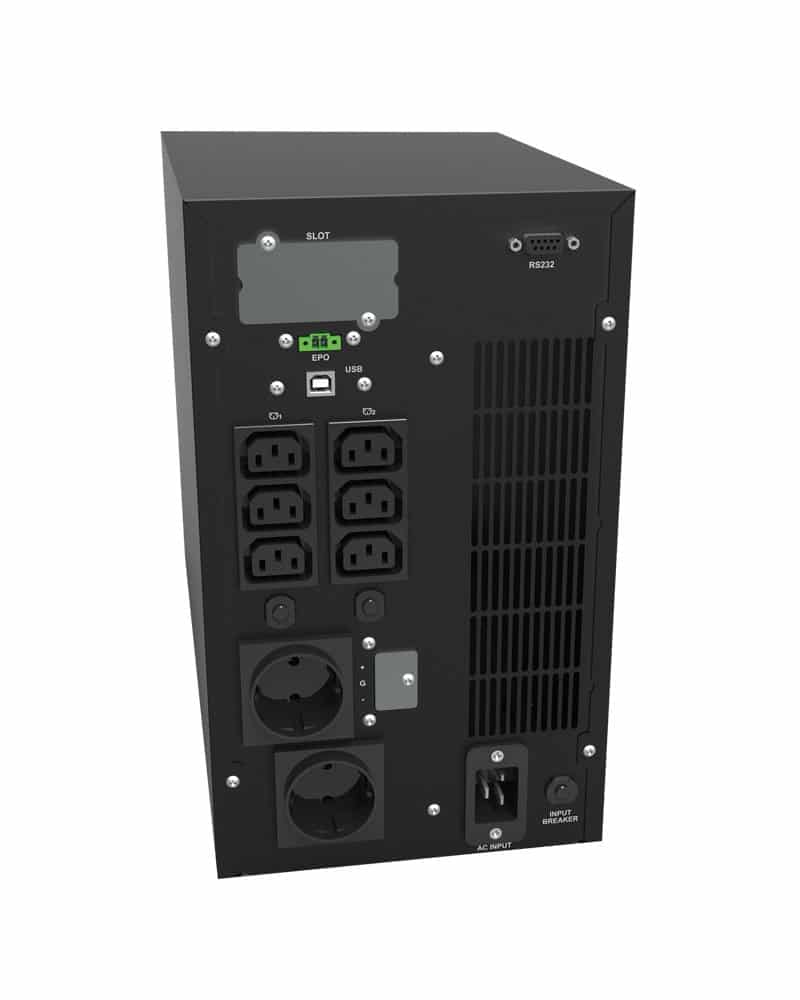

6 IEC 320-C13 2 Schuko |
Nominal voltage | 230 Vac +/-1% 1-phase | ||
Frequency | 50/60 Hz | ||
Power factor | Any power factor up to 0.9 lagging or leading without power derating | ||
Overload capability | 105% continuous, 120% for 30 seconds, 150% for 10 seconds, >150% transfer to bypass |
||
Mode of operation | On-line, Eco-mode |
Battery
Autonomy time internal battery (min)◆ |
50% load | 12 | 13 | 15 |
100% load | 6 | 6 | 6 |
*Tower ◆ Measurement conditions: optimised parameters, fully charged battery, 0.7 PF
Connectivity and function extensions

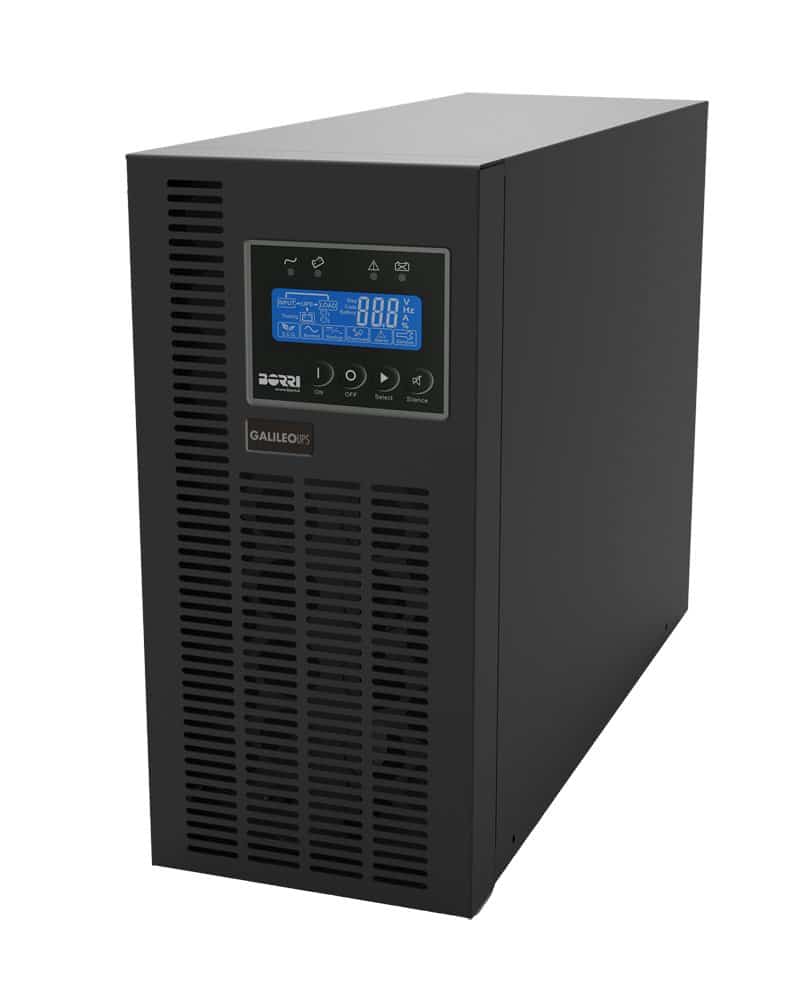

Front panel | Display LCD, status LED, function keys |
Communication | Included: USB, EPO, RS232. Optional: dry contact card, SNMP card. Compatible platforms: Windows, Linux, Mac |
Environmental
Operating temperature range | 0°C to +40°C |
Altitude (AMSL) | <1000 m without power reduction, > 1000 m with reduction of 0.5% per 100 m |
Audible noise at 1m (dBA) | <50 |
Standards and certifications
Quality assurance, environment, health and safety |
ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007 |
Safety | IEC/EN 62040-1 |
EMC | IEC/EN 62040-2 |
Marking | CE |
